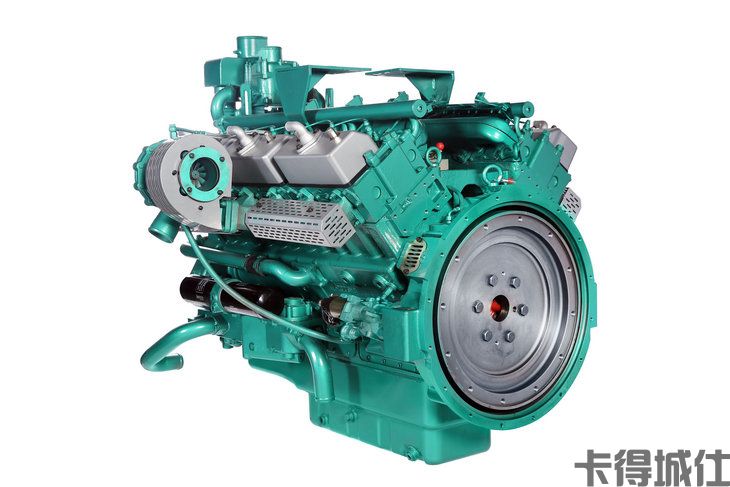

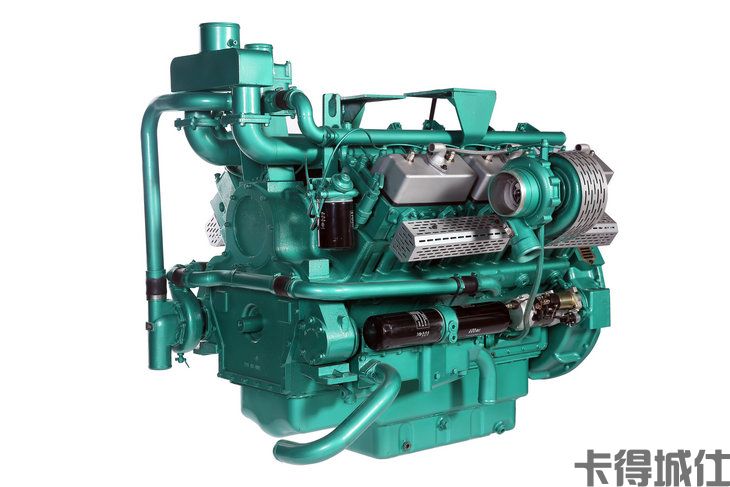

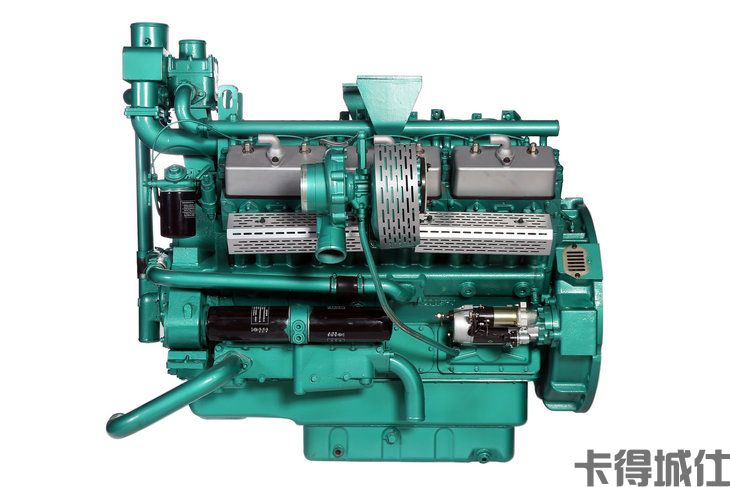

發動機型號 Engine Model | KD30H1320 |
柴油機型式 Type | 直噴、V型、四沖程、水冷、四氣門 Direct injection,V-type,four-stroke,water-cooled,4-stroke |
進氣方式 Aspiration | 增壓中冷 Turbocharged with intercooled |
1小時功率 1h Power(KW) | 1320 |
缸徑/行程 Bore/Stroke(mm) | 138×165 |
壓縮比 Compression ratio | 14.77 |
總排量 Total Displacement(L) | 29.64 |
標定工況燃油消耗率 BSFC@Rated Condition(g/kw.h) | ≤198 |
標定工況機油消耗率 BSFC@Oil Rated Condition(g/kw.h) | ≤0.7 |
怠速調速率 Idle State Rate(%) | ≤5% |
調速方式 Type of Governor | 電子調速 |
怠速轉速 Idle Speed(rpm) | 700 |
轉速 Rated Speed(rpm) | 1500 |
轉向 Direction of rotation | 面向飛輪端逆時針 |
起動方式 Anticilckwise facing the flywheel | 24V電壓起動 |
噪聲 Noise(db） | ≤121 |
煙度 Smoke(FSN) | ≤1.9 |
凈重 Net Weight(kg) | 2500 |
長*寬*高 Long.wide.high(mm) | 1682*1562*1256 |
排放/接口 | 國二/0#18 |
